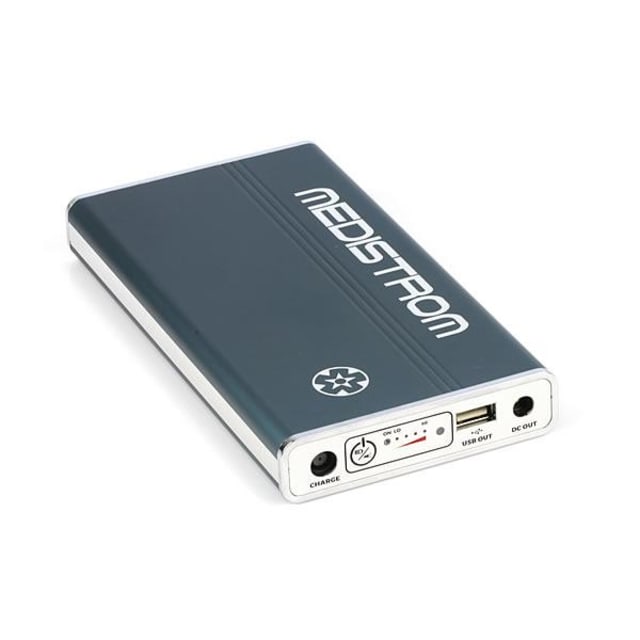

Pilot-24 Lite is manufactured with genuine LG industrial grade rechargeable lithium ion
cells. The Pilot-24 Lite can be used as a backup power source to prevent interruption to
PAP therapy in the case of a power outage.
Pilot-24 Lite can serve as a portable PAP battery during travel by air, land, or sea when
the mains power source is not available.
Pilot-24 Lite is designed to be used with most 24V CPAP machine. Pilot-24 Lite has a USB port (output: 5V 2.5A) which can be used to charge cellphones,
tablets and other commonly used handheld devices.
Pilot-24 Lite is designed to be charged using the original ResMed AirSense 10 series AC power adapter directly. It can also be charged using the AirMini series power adapter by using the short charging adapter cable for ResMed AirMini. Charge time via the ResMed AirMini AC adapter is approximately 7-9 hours.
The Pilot-24 Lite can be used with ONLY the following APAP/CPAP devices:
+ ResMed AirSense 10 series
+ ResMed AirMini
+ Phillips Respironics DreamStation Go series (cables sold separately, SKU# P24PDGPLK)
+ BMC Luna (cables sold separately, SKU# P24PDGPLK)
+ ResMed S9 series (cables sold separately, SKU# P24R09PLK)
+ Apex iCH series (cables sold separately, SKU#P24AMIPLK)
Specification
Capacity |
95Wh |
Cell Type |
LG Industrial grade genuine rechargeable lithium ion cells |
Rated Input |
24V, 60W (NORMAL), 90W (MAX) |
Rated Output |
DC 24V, 3.5A |
USB Out |
5V, 2.5A |
Life Span |
Over 500 full charge/discharge cycles |
Case |
Aluminum |
Dimensions |
9cm x 17cm x 2cm, Weight 1.3lbs |
Power Gauge |
4 stage Charge Level Indicator Lights |
Recharge time |
2-3 hours (7 to 9 hours via the ResMed AirMini AC Adapter) |

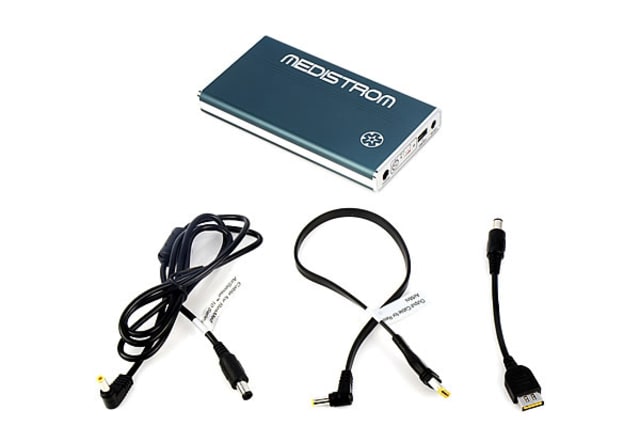

What's include?
+ MEDISTROM Pilot 24 Lite
+ DC Out Cable for ResMed AirSense 10
+ DC Out Cable for ResMed AirMini
+ Short Charging Adapter Cable for ResMed AirMini
+ Battery carry sleeve
