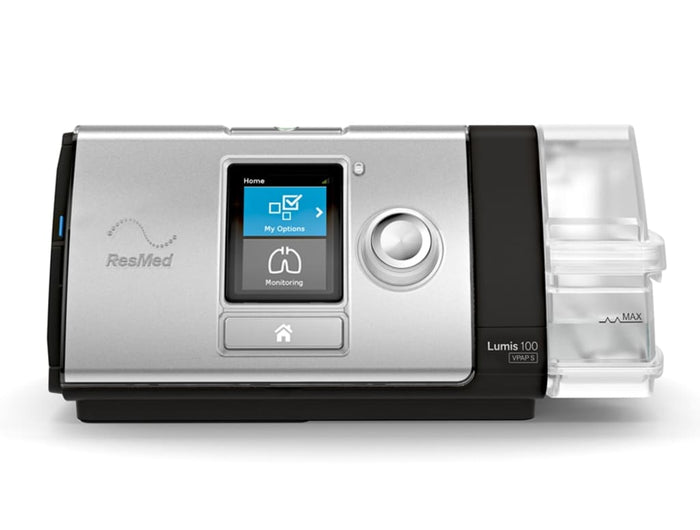

The Lumis 100 VPAP S is a noninvasive ventilator tailored for spontaneously breathing patients with respiratory insufficiency who are not dependent on ventilation support. It offers simple setup and operation, along with integrated wireless connectivity to AirView, ResMed's cloud-based patient management system, enabling remote monitoring.
The ResMed Lumis 100 VPAP S boasts several key features
QuickNav for low-touch therapy adjustment
By simply double-clicking the home button on the CPAP device , you can quickly and easily toggle between the Settings and Monitoring screens.
ClimateControl Auto for automatic humidification
When used with a HumidAir heated humidifier and ClimateLineAir heated tube, Lumis delivers humidification automatically – no settings to change and no complicated menus to navigate. So you can set your patients up to receive all the benefits of humidification as soon as they turn on their device.
Ramp and Ramp Down for extra comfort
Lumis offers both Ramp and Ramp Down features to help patients ease into and out of each therapy session. Ramp reaches the prescribed therapy level gradually and comfortably, while Ramp Down gradually reduces the pressure support and EPAP to help ease patients off therapy.
AirView for remote patient management
Your patients’ therapy data can be sent seamlessly and securely to AirView, where you can view it remotely, and gain timely access to the most recent therapy statistics and trend data. AirView’s ‘remote assist’ and ‘remote settings’ changes also allow for easy and efficient device management.
PRODUCT INFORMATION
| Manufacturer | |
| In The Package | Resmed Lumis 100 VPAP - CPAP machine, built-in humidair humidifier, standard humidifier chamber, climateline heated tube, universal power supply with cord, travel bag, starter filter, filter cover, sd data card, printed users manual. |
| Part Number(S) | 28013 (Airsense 10 Autoset with heated humidifier & climateline tubing) |
| Warranty | 2 years |
| Modes | CPAP, S |
| Operating pressure range | 2–25 cm H2O (2–25 hPa) in S mode 4–20 cm H2 O (4–20 hPa) in CPAP mode |
| Sound pressure level | 26.6 dBA with uncertainty of 2 dBA as measured according to ISO 17510-1:2009 (CPAP mode) |
| Dimensions (H x W x D) | 116 mm x 205 mm x 150 mm (Device only) 116 mm x 255 mm x 150 mm (Device with HumidAir humidifier) |
| Weight | 1106 g (Device only) 1268 g (Device with HumidAir humidifier) |
| 90W power supply unit | Input range: 100–240V, 50–60Hz, 57VA (typical power consumption) 108VA (peak power consumption) |
| Operating temperature humidity/altitude | +5°C to +35°C, 10–95% relative humidity, non-condensing/sea level to 2,591 m; air pressure range 1013 hPa to 738 hPa |
| Storage and transport temperature/humidity | -20°C to +60°C/5–95% relative humidity, non-condensing |
Notes: warranty applies to primary item. accessory and parts warranties 90 days. review manufacturer's documentation for full details.
